b2000::b2dbv3::Model Class Reference

#include "b2model_database.H"

Inheritance diagram for b2000::b2dbv3::Model:

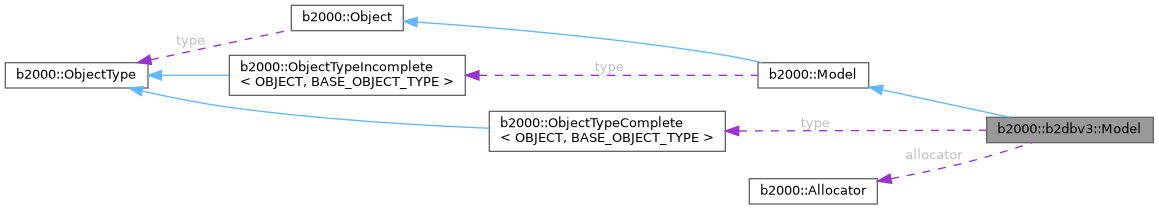

Collaboration diagram for b2000::b2dbv3::Model:

Public Member Functions
void	init (const std::string &dbname="", Dictionary *cmdline_set_=nullptr) override
CaseList &	get_case_list () override
const int	get_handle () override
Domain &	get_domain () override
NaturalBoundaryCondition &	get_natural_boundary_condition (ObjectTypeIncomplete< NaturalBoundaryCondition > *bc_type) override
EssentialBoundaryCondition &	get_essential_boundary_condition (ObjectTypeIncomplete< EssentialBoundaryCondition > *bc_type) override
ModelReductionBoundaryCondition &	get_model_reduction_boundary_condition (ObjectTypeIncomplete< ModelReductionBoundaryCondition > *bc_type) override
InitialCondition &	get_initial_condition () override
Solution &	get_solution () override
Solver &	get_solver () override
void	set_case (b2000::Case &case_) override
Case *	get_case () override
int	get_subcase_id () const override
void	set_subcase_id (const int subcase_id_) override
void	get_subcase_ids (std::set< int > &subcase_ids_) const override
Public Member Functions inherited from b2000::Model
virtual void	run ()
Public Member Functions inherited from b2000::Object
virtual const std::string &	get_object_name () const
virtual	~Object ()

Additional Inherited Members
Static Public Attributes inherited from b2000::Object
static ObjectType	type

Detailed Description

The object associated with the B2000 database.

Member Function Documentation

get_case()

Case * b2000::b2dbv3::Model::get_case ( )

inlineoverridevirtual

Get the current case.

Returns

a pointer to the Case object describing the current load case.

Implements b2000::Model.

get_case_list()

CaseList & b2000::b2dbv3::Model::get_case_list ( )

overridevirtual

Get the list of cases of the model.

Implements b2000::Model.

get_domain()

Domain & b2000::b2dbv3::Model::get_domain ( )

overridevirtual

Get the Domain instance.

Implements b2000::Model.

get_essential_boundary_condition()

EssentialBoundaryCondition & b2000::b2dbv3::Model::get_essential_boundary_condition ( ObjectTypeIncomplete< EssentialBoundaryCondition > *  bc_type )

overridevirtual

Get the essential boundary conditions.

Implements b2000::Model.

get_handle()

const int b2000::b2dbv3::Model::get_handle ( )

overridevirtual

Get the MemCom database handle, if any, or 0 if not defined.

Implements b2000::Model.

get_initial_condition()

InitialCondition & b2000::b2dbv3::Model::get_initial_condition ( )

overridevirtual

This method returns a reference to the initial_condition object which is owned by a unique_ptr. Do not call this method to assign the address of the returned object to another pointer!

Implements b2000::Model.

get_model_reduction_boundary_condition()

ModelReductionBoundaryCondition & b2000::b2dbv3::Model::get_model_reduction_boundary_condition ( ObjectTypeIncomplete< ModelReductionBoundaryCondition > *  bc_type )

overridevirtual

Get the model reduction boundary conditions.

Implements b2000::Model.

get_natural_boundary_condition()

NaturalBoundaryCondition & b2000::b2dbv3::Model::get_natural_boundary_condition ( ObjectTypeIncomplete< NaturalBoundaryCondition > *  bc_type )

overridevirtual

Get the natural boundary conditions.

Implements b2000::Model.

get_solution()

Solution & b2000::b2dbv3::Model::get_solution ( )

overridevirtual

Get the Solution object that will hold the solution data.

Implements b2000::Model.

get_solver()

Solver & b2000::b2dbv3::Model::get_solver ( )

overridevirtual

This method returns a reference to the solver object which is owned by a unique_ptr. Do not call this method to assign the address of the returned object to another pointer!

Implements b2000::Model.

get_subcase_id()

int b2000::b2dbv3::Model::get_subcase_id ( ) const

inlineoverridevirtual

Get the analysis subcase.

Implements b2000::Model.

get_subcase_ids()

void b2000::b2dbv3::Model::get_subcase_ids ( std::set< int > &  subcase_ids_ ) const

overridevirtual

Get the list of subcases that are defined for the current case, using the Case object.

Implements b2000::Model.

init()

void b2000::b2dbv3::Model::init ( const std::string &  dbname = "", Dictionary *  cmdline_set_ = nullptr  )

overridevirtual

Initialize the model.

Implements b2000::Model.

set_case()

void b2000::b2dbv3::Model::set_case ( b2000::Case &  case_ )

overridevirtual

Set the case of the model.

Apply this method to all of the defined objects (domain, boundary condition, etc) of the models. The subcase ID is set to the ID of the first subcase or to 0 if no subcases are defined for this case.

Implements b2000::Model.

set_subcase_id()

void b2000::b2dbv3::Model::set_subcase_id ( const int  subcase_id_ )

overridevirtual

Set the analysis subcase.

Implements b2000::Model.

---

The documentation for this class was generated from the following files:

• io/b2000_db/b2000_db_v3/b2model_database.H
• io/b2000_db/b2000_db_v3/b2model_database.C
