b2000::Solution Class Reference

#include "b2solution.H"

Inheritance diagram for b2000::Solution:

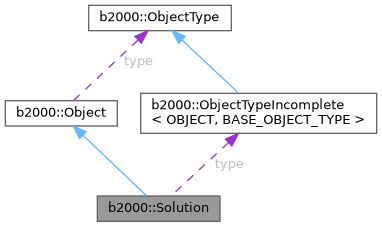

Collaboration diagram for b2000::Solution:

Public Member Functions
virtual void	set_model (Model &model)=0
virtual void	set_case (Case &case_)=0
virtual void	set_subcase_id (int subcase_id_)=0
virtual bool	is_need_refinement () const
virtual void	set_need_refinement ()
virtual gradient_container	get_gradient_container ()=0
virtual void	set_value (const std::string &key, bool value)
virtual void	set_system_null_space (const b2linalg::Matrix< double, b2linalg::Mrectangle_constref > &nks, bool normalize=true, const std::string suffix="NS")
virtual void	set_system_null_space (const b2linalg::Matrix< b2000::csda< double >, b2linalg::Mrectangle_constref > &nks, bool normalize=true, const std::string suffix="NS")
virtual void	set_system_null_space (const b2linalg::Matrix< std::complex< double >, b2linalg::Mrectangle_constref > &nks, bool normalize=true, const std::string suffix="NS")
Public Member Functions inherited from b2000::Object
virtual const std::string &	get_object_name () const
virtual	~Object ()

Additional Inherited Members
Static Public Attributes inherited from b2000::Object
static ObjectType	type

Detailed Description

Abstract base class to hold all solution data of an analysis step of a complete FE model, computed by the Solver instance.

Member Function Documentation

get_gradient_container()

virtual gradient_container b2000::Solution::get_gradient_container ( )

pure virtual

Return a shared_ptr to the GradientContainer object that is contained within the Solution object.

is_need_refinement()

virtual bool b2000::Solution::is_need_refinement ( ) const

inlinevirtual

Returns

Whether the last computed solution needs refinement (used by Solver instances that support adaptive refinement).

set_case()

virtual void b2000::Solution::set_case ( Case &  case_ )

pure virtual

Set the Case object.

set_model()

virtual void b2000::Solution::set_model ( Model &  model )

pure virtual

Set the Model object.

set_need_refinement()

virtual void b2000::Solution::set_need_refinement ( )

inlinevirtual

Set the need refinement flag for the solution.

set_subcase_id()

virtual void b2000::Solution::set_subcase_id ( int  subcase_id_ )

pure virtual

Set the subcase ID.

set_system_null_space() [1/3]

virtual void b2000::Solution::set_system_null_space ( const b2linalg::Matrix< b2000::csda< double >, b2linalg::Mrectangle_constref > &  nks, bool  normalize = true, const std::string  suffix = "NS"  )

inlinevirtual

Store the null kernel space of the system of linear (or linearized) complex-valued equations if the system is under-constrained.

Parameters

nks	the null kernel space (or a part of it).

set_system_null_space() [2/3]

virtual void b2000::Solution::set_system_null_space ( const b2linalg::Matrix< double, b2linalg::Mrectangle_constref > &  nks, bool  normalize = true, const std::string  suffix = "NS"  )

inlinevirtual

Store the null kernel space of the system of linear (or linearized) real-valued equations if the system is under-constrained.

Parameters

nks	the null kernel space (or a part of it).

set_system_null_space() [3/3]

virtual void b2000::Solution::set_system_null_space ( const b2linalg::Matrix< std::complex< double >, b2linalg::Mrectangle_constref > &  nks, bool  normalize = true, const std::string  suffix = "NS"  )

inlinevirtual

Store the null kernel space of the system of linear (or linearized) complex-valued equations if the system is under-constrained.

Parameters

nks	the null kernel space (or a part of it).

set_value()

virtual void b2000::Solution::set_value ( const std::string &  key, bool  value  )

inlinevirtual

Set a (key,value) pair as part of the solution.

---

The documentation for this class was generated from the following files:

• model/b2solution.H
• model/b2solution.C
