b2000::b2dbv3::Domain Class Reference

A in-core implementation of the b2dbv3::Domain. All the Element, Node and ElementProperty objects are loaded in memory at theInitialisation of the object with the database. More...

#include "b2domain_database.H"

Inheritance diagram for b2000::b2dbv3::Domain:

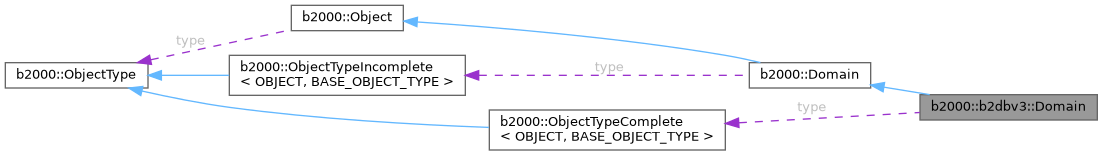

Collaboration diagram for b2000::b2dbv3::Domain:

Public Member Functions
void	set_model (b2000::Model &model) override
void	set_case (b2000::Case &case_) override
void	set_subcase_id (const int subcase_id_) override
bool	have_temperature () const override
size_t	get_number_of_dof () const override
size_t	get_number_of_elements () const override
size_t	get_number_of_elements_and_subelements () const override
size_t	get_number_of_nodes () const override
const std::vector< Element::VariableInfo >	get_value_info () const override
node_iterator	get_node_iterator () override
element_iterator	get_element_iterator () override
void	save_field (const std::string &name, const b2linalg::Vector< double, b2linalg::Vdense_constref > &dof) override
void	save_field (const std::string &name, const b2linalg::Vector< b2000::csda< double >, b2linalg::Vdense_constref > &dof) override
void	save_field (const std::string &name, const b2linalg::Vector< std::complex< double >, b2linalg::Vdense_constref > &dof) override
void	save_state (const std::string &state_id) override
void	load_state (const std::string &state_id) override
b2linalg::SparseMatrixConnectivityType	get_dof_connectivity_type () const override
Node *	get_node (const std::string &node_name) override
Element *	get_element (const std::string &element_name) override
void	get_adjacent_elements (std::pair< int, const Node *const * > node_list, std::vector< AdjacentElement > &adjacent_elements) override
void	get_elements_of_same_type_near (const Element *e, double dist, std::vector< Element * > &element_list) override
void	get_slave_node (std::vector< std::pair< const Node *, const Node * > > &slave_node) override
void	set_dof (const b2linalg::Matrix< double, b2linalg::Mrectangle_constref > &dof) override
void	set_dof (const b2linalg::Matrix< b2000::csda< double >, b2linalg::Mrectangle_constref > &dof) override
void	set_dof (const b2linalg::Matrix< std::complex< double >, b2linalg::Mrectangle_constref > &dof) override
const b2linalg::Matrix< double, b2linalg::Mrectangle_constref > &	get_dof (double) override
Element *	get_parent_element_and_nodes_mapping (b2000::Domain &parent_domain, const b2000::Element &element, b2linalg::Matrix< double > &parent_nodes_internal_coor) override
Element *	get_parent_element_mapping (b2000::Domain &parent_domain, const b2000::Node &node, b2linalg::Vector< double > &parent_internal_coor) override
const double *	get_node_local_referential_double (const Node &node) const override
const b2000::csda< double > *	get_node_local_referential_csda (const Node &node) const override
Public Member Functions inherited from b2000::Domain
template<typename T >
const T *	get_node_local_referential (const Node &node) const
virtual void	get_adjacent_elements (const Node *node, std::vector< AdjacentElement > &adjacent_elements)
std::vector< std::reference_wrapper< Element > > &	GetElementContainer ()
	Return private member domain_element_container_ holding all elements of this domain.
void	FillElementContainer ()
	Fill domain_element_container_ with all elements of this domain.
Public Member Functions inherited from b2000::Object
virtual const std::string &	get_object_name () const
virtual	~Object ()

Additional Inherited Members
Public Types inherited from b2000::Domain
Static Public Attributes inherited from b2000::Object
static ObjectType	type

Detailed Description

A in-core implementation of the b2dbv3::Domain. All the Element, Node and ElementProperty objects are loaded in memory at theInitialisation of the object with the database.

Note

that the processing of the element types defined inside enum element_type_t takes place using a binary interpretation of the different values. Do not assume a simple sequential ordering when adding further element types!

Member Function Documentation

get_adjacent_elements()

void b2000::b2dbv3::Domain::get_adjacent_elements ( std::pair< int, const Node *const * >  node_list, std::vector< AdjacentElement > &  adjacent_elements  )

inlineoverridevirtual

Get the list of elements that are adjacent to all the Node instances given as argument.

Parameters

node_list	A pair (first, second) with first being the number of nodes and second a pointer to an array of Node pointers (input).
adjacent_elements	A vector of containing information on adjacent elements. Each entry corresponds to one Element.

The AdjacentElement::internal_node_id_list contains the node-internal ID's of the nodes given in node_list that

Implements b2000::Domain.

get_dof()

const b2linalg::Matrix< double, b2linalg::Mrectangle_constref > & b2000::b2dbv3::Domain::get_dof ( double  )

inlineoverridevirtual

Get a subset of the current degrees-of-freedom.

Implements b2000::Domain.

get_dof_connectivity_type()

b2linalg::SparseMatrixConnectivityType b2000::b2dbv3::Domain::get_dof_connectivity_type ( ) const

inlineoverridevirtual

Returns

The type of connectivity of FE elements present in the domain (1D, 2D, 3D, etc.). This function is called by the Solver instance (for the sparse matrix solver). Depending on this value, the Solver decides what graph partitioning algorithm to use for the symbolic factorization.

Implements b2000::Domain.

get_element()

Element * b2000::b2dbv3::Domain::get_element ( const std::string &  element_name )

inlineoverridevirtual

Returns

A pointer to the Element instance with Element::get_object_name() == element_name, or 0 if such a Element instance does not exist.

Note

The computational cost of this operation can be O(n) where n is the number of elements in the FE domain.

Reimplemented from b2000::Domain.

get_element_iterator()

element_iterator b2000::b2dbv3::Domain::get_element_iterator ( )

inlineoverridevirtual

Returns

A std::unique_ptr to ElementIterator to iterate over all elements of the domain.

Implements b2000::Domain.

get_elements_of_same_type_near()

void b2000::b2dbv3::Domain::get_elements_of_same_type_near ( const Element *  e, double  dist, std::vector< Element * > &  element_list  )

overridevirtual

Get the list of elements near a given element and of the same type. This function is useful e.g. for contact overlay elements.

Parameters

e	A pointer to the Element instance (input).
dist	The maximum search distance (input).
element_list	A vector of pointers to Element instances (output).

The list of returned elements contains all elements of the same type as Element e, and for with the distance with e is less or equal dist. The list may also contain some elements whose distance to e is slightly larger than dist.

Implements b2000::Domain.

get_node()

Node * b2000::b2dbv3::Domain::get_node ( const std::string &  node_name )

inlineoverridevirtual

Returns

A pointer to the Node instance with Node::get_object_name() == node_name, or 0 if such a Node instance does not exist.

Note

The computational cost of this operation can be O(n) where n is the number of nodes in the FE domain.

Reimplemented from b2000::Domain.

get_node_iterator()

node_iterator b2000::b2dbv3::Domain::get_node_iterator ( )

inlineoverridevirtual

Return a std::unique_ptr to NodeIterator to iterate over all nodes of the FE domain.

Implements b2000::Domain.

get_node_local_referential_csda()

const b2000::csda< double > * b2000::b2dbv3::Domain::get_node_local_referential_csda ( const Node &  node ) const

inlineoverridevirtual

Must be overwritten by implementations of Domain.

Implements b2000::Domain.

get_node_local_referential_double()

const double * b2000::b2dbv3::Domain::get_node_local_referential_double ( const Node &  node ) const

inlineoverridevirtual

Must be overwritten by implementations of Domain.

Implements b2000::Domain.

get_number_of_dof()

size_t b2000::b2dbv3::Domain::get_number_of_dof ( ) const

inlineoverridevirtual

Returns

The number of degrees-of-freedom in the domain.

Implements b2000::Domain.

get_number_of_elements()

size_t b2000::b2dbv3::Domain::get_number_of_elements ( ) const

inlineoverridevirtual

Returns

The number of elements in the domain.

Implements b2000::Domain.

get_number_of_elements_and_subelements()

size_t b2000::b2dbv3::Domain::get_number_of_elements_and_subelements ( ) const

inlineoverridevirtual

Returns

The number of elements in the domain plus the numbers of their subelements (if any).

Implements b2000::Domain.

get_number_of_nodes()

size_t b2000::b2dbv3::Domain::get_number_of_nodes ( ) const

inlineoverridevirtual

Returns

The number of nodes in the domain.

Implements b2000::Domain.

get_parent_element_and_nodes_mapping()

Element * b2000::b2dbv3::Domain::get_parent_element_and_nodes_mapping ( b2000::Domain &  parent_domain, const b2000::Element &  element, b2linalg::Matrix< double > &  parent_nodes_internal_coor  )

inlineoverridevirtual

Get the Element of the parent domain containing an element belonging to this domain (the local domain).

Parameters

parent_domain	The parent domain to search.
element	The Element instance of the this domain (= the local element).
parent_nodes_internal_coor	The element-internal coordinates of the local element inside the parent element.

Returns

A pointer to the parent Element of the parent Domain or 0, if no parent element exists.

Reimplemented from b2000::Domain.

get_parent_element_mapping()

Element * b2000::b2dbv3::Domain::get_parent_element_mapping ( b2000::Domain &  parent_domain, const b2000::Node &  node, b2linalg::Vector< double > &  parent_internal_coor  )

inlineoverridevirtual

Get the first Element of the parent domain containing a node belonging to this domain (the local domain.

Parameters

parent_domain	The parent domain to search.
parent_domain	The parent domain to search.
node	The Node instance of the this domain (= the local node).
parent_internal_coor	The element-internal coordinates of the local node inside the parent element.

Returns

A pointer to the parent Element of the parent Domain or 0, if no parent element exists.

Reimplemented from b2000::Domain.

get_slave_node()

void b2000::b2dbv3::Domain::get_slave_node ( std::vector< std::pair< const Node *, const Node * > > &  slave_node )

overridevirtual

In a domain, coinciding nodes of different branches may be merged together. In this case, one of the nodes becomes the master node and the other node becomes the slave node.

Parameters

slave_node

A vector of (slave,master) pairs of pointers to Node instances (output).

Implements b2000::Domain.

get_value_info()

const std::vector< Element::VariableInfo > b2000::b2dbv3::Domain::get_value_info ( ) const

inlineoverridevirtual

Returns

A vector containing the type of response for each variable of the whole domain (all Element instances). See also Element::get_value_info().

Implements b2000::Domain.

have_temperature()

bool b2000::b2dbv3::Domain::have_temperature ( ) const

inlineoverridevirtual

Whether temperature conditions affecting the right-hand side through the element response (thermal expansion) are present for the current case and subcase.

Implements b2000::Domain.

load_state()

void b2000::b2dbv3::Domain::load_state ( const std::string &  state_id )

inlineoverridevirtual

Load the state of the FE domain with the identifier state_id. This function is called by the Solver instance upon restart.

Implements b2000::Domain.

save_field() [1/3]

void b2000::b2dbv3::Domain::save_field ( const std::string &  name_id, const b2linalg::Vector< b2000::csda< double >, b2linalg::Vdense_constref > &  dof  )

inlineoverridevirtual

Save a csda-valued field defined on all degrees-of-freedom. This function is called by the Solver instance.

Parameters

name_id	The name of the field.
dof	A vector containing values for all degrees-of-freedom present in the FE domain.

Implements b2000::Domain.

save_field() [2/3]

void b2000::b2dbv3::Domain::save_field ( const std::string &  name_id, const b2linalg::Vector< double, b2linalg::Vdense_constref > &  dof  )

inlineoverridevirtual

Save a real-valued field defined on all degrees-of-freedom. This function is called by the Solver instance. Such fields may be, e.g. for stress analysis, the displacement field ("DISP"), or the field containing the summed-up internal forces ("RCFO").

Parameters

name_id	The name of the field.
dof	A vector containing values for all degrees-of-freedom present in the FE domain.

Implements b2000::Domain.

save_field() [3/3]

void b2000::b2dbv3::Domain::save_field ( const std::string &  name_id, const b2linalg::Vector< std::complex< double >, b2linalg::Vdense_constref > &  dof  )

inlineoverridevirtual

Save a complex-valued field defined on all degrees-of-freedom. This function is called by the Solver instance.

Parameters

name_id	The name of the field.
dof	A vector containing values for all degrees-of-freedom present in the FE domain.

Implements b2000::Domain.

save_state()

void b2000::b2dbv3::Domain::save_state ( const std::string &  state_id )

inlineoverridevirtual

Save the state of the FE domain with the identifier state_id. This function is called by the Solver instance.

Implements b2000::Domain.

set_case()

void b2000::b2dbv3::Domain::set_case ( b2000::Case &  case_ )

overridevirtual

Set the current Case instance. This function is called by the Model instance.

Implements b2000::Domain.

set_dof() [1/3]

void b2000::b2dbv3::Domain::set_dof ( const b2linalg::Matrix< b2000::csda< double >, b2linalg::Mrectangle_constref > &  dof )

inlineoverridevirtual

Set the current degrees-of- freedom.

Implements b2000::Domain.

set_dof() [2/3]

void b2000::b2dbv3::Domain::set_dof ( const b2linalg::Matrix< double, b2linalg::Mrectangle_constref > &  dof )

inlineoverridevirtual

Set the current degrees-of-freedom.

Implements b2000::Domain.

set_dof() [3/3]

void b2000::b2dbv3::Domain::set_dof ( const b2linalg::Matrix< std::complex< double >, b2linalg::Mrectangle_constref > &  dof )

inlineoverridevirtual

Set the current degrees-of- freedom.

Implements b2000::Domain.

set_model()

void b2000::b2dbv3::Domain::set_model ( b2000::Model &  model )

overridevirtual

Set a reference to the Model instance. This function is called by the Model instance.

Implements b2000::Domain.

set_subcase_id()

void b2000::b2dbv3::Domain::set_subcase_id ( const int  subcase_id_ )

inlineoverridevirtual

Set the subcase ID.

Implements b2000::Domain.

---

The documentation for this class was generated from the following files:

• io/b2000_db/b2000_db_v3/b2domain_database.H
• io/b2000_db/b2000_db_v3/b2domain_database.C
