b2000::b2dbv3::LaminateProperty Class Reference

#include "b2material_property.H"

Inheritance diagram for b2000::b2dbv3::LaminateProperty:

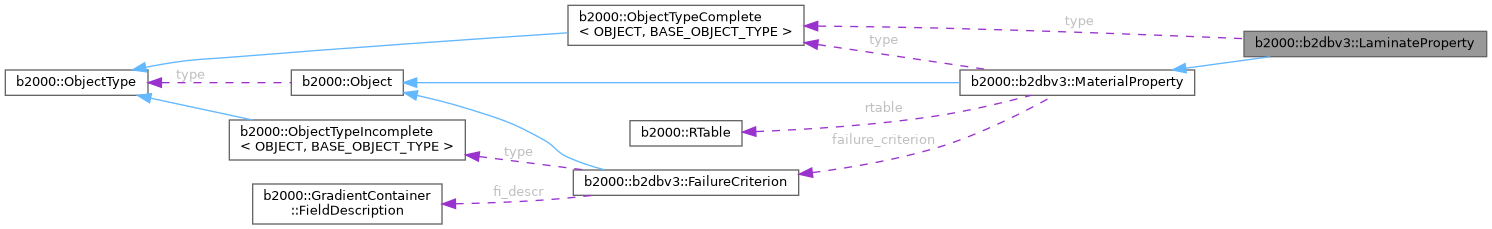

Collaboration diagram for b2000::b2dbv3::LaminateProperty:

Public Member Functions
void	append_layer (const b2000::csda< double > thickness_, const b2000::csda< double > angle_, const int plygroup_, MaterialProperty *material_)
const Layer &	operator[] (const int layer_id) const
	Const-access to the layer attributes.
Layer &	operator[] (const int layer_id)
	Non-const access to the layer attributes.
int	number_of_layer () const override
const RTable &	get_rtable (int layer_id=0) const override
const FailureCriterion *	get_failure_criterion (int layer_id=0) const override
Public Member Functions inherited from b2000::b2dbv3::MaterialProperty
void	init (const RTable &rtable_, Allocator &allocator)
	Called by the Domain object.
const std::string &	get_object_name () const override
Public Member Functions inherited from b2000::Object
virtual	~Object ()

Additional Inherited Members
Static Public Attributes inherited from b2000::Object
static ObjectType	type

Detailed Description

C++ representaton of a laminate MATERIAL.* dataset. Instances are created and initialized by the Domain object.

Member Function Documentation

append_layer()

void b2000::b2dbv3::LaminateProperty::append_layer ( const b2000::csda< double >  thickness_, const b2000::csda< double >  angle_, const int  plygroup_, MaterialProperty *  material_  )

inline

Append a layer to the laminate. This function is called by the Domain object during the set-up of all MaterialProperty instances.

get_failure_criterion()

const FailureCriterion * b2000::b2dbv3::LaminateProperty::get_failure_criterion ( int  layer_id = 0 ) const

inlineoverridevirtual

Returns

A pointer to a FailureCriterion instance (or 0) for the indicated layer.

Reimplemented from b2000::b2dbv3::MaterialProperty.

get_rtable()

const RTable & b2000::b2dbv3::LaminateProperty::get_rtable ( int  layer_id = 0 ) const

inlineoverridevirtual

Per layer attributes in the B2000++ database format. These are used by the material/property implementations to extract the material parameters and the property parameters, respectively.

Reimplemented from b2000::b2dbv3::MaterialProperty.

number_of_layer()

int b2000::b2dbv3::LaminateProperty::number_of_layer ( ) const

inlineoverridevirtual

Returns

The number of layers. Non-layered materials have 1 "layer". Laminates have at least 1 layer.

Reimplemented from b2000::b2dbv3::MaterialProperty.

---

The documentation for this class was generated from the following files:

• io/b2000_db/b2000_db_v3/b2material_property.H
• io/b2000_db/b2000_db_v3/b2material_property.C
