One-step (and direct) method, either implicit or explicit. Scheme parameters determine stability and convergence. Default values are: (aka trapezoidal rule, 2nd order accurate) beta == 0.25 (beta deternubes stability), gamma == 0.5 (gamma determines accuracy) More...

#include "b2newmark.H"

Inheritance diagram for b2000::solver::NewmarkIntegrator< T >:

[legend]

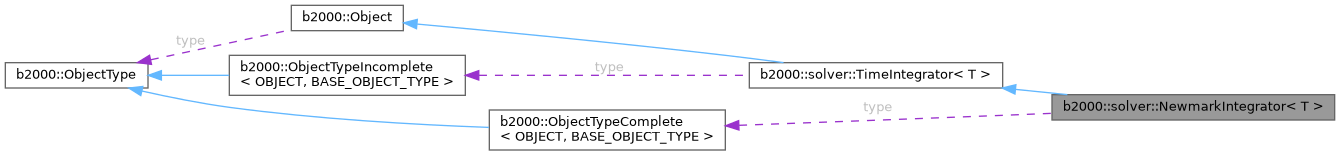

Collaboration diagram for b2000::solver::NewmarkIntegrator< T >:

[legend]

Public Member Functions
virtual void	SetAttribute (const Case &case__) override

virtual void	InitializeTimeIntegrator (const b2linalg::Matrix< T, b2linalg::Mrectangle > &initial_dof, const double dt) override
	Initialize the time integrator with the model to act on the initial condition, the initial point in time and the case definition for the current computation.

virtual void	InitializeFieldsForThisTimeStep (b2linalg::Matrix< T, b2linalg::Mrectangle > &dof, const b2linalg::Matrix< T, b2linalg::Mrectangle > &dU) override
	Update velocities and (possibly) also accelerations after each time step. This method will also save the values from the previous time step ("current" t_n+1) as the new values for the following time step ("new" t_n). When this method is called the displacements dof[0] are already up to date, but velocities dof[1] and accelerations dof[2] are not.

virtual void	UpdateFields (b2linalg::Matrix< T, b2linalg::Mrectangle > &dof, const b2linalg::Matrix< T, b2linalg::Mrectangle > &dU) override
	Update velocities and (possibly) also accelerations after each global iteration.

virtual TimeIntegrator< T >::EffectiveSymmetricSystem	GetEffectiveElementSystem (const b2linalg::Matrix< T, b2linalg::Mpacked > &k, const b2linalg::Matrix< T, b2linalg::Mpacked > &d, const b2linalg::Matrix< T, b2linalg::Mpacked > &m, const b2linalg::Matrix< T, b2linalg::Mrectangle_constref > &dof, const b2linalg::Index &index) const override
	Calculates the element effective system based on the concrete time integrator.

virtual TimeIntegrator< T >::EffectiveUnsymmetricSystem	GetEffectiveElementSystem (const b2linalg::Matrix< T, b2linalg::Mrectangle > &k, const b2linalg::Matrix< T, b2linalg::Mrectangle > &d, const b2linalg::Matrix< T, b2linalg::Mrectangle > &m, const b2linalg::Matrix< T, b2linalg::Mrectangle_constref > &dof, const b2linalg::Index &index) const override
	Calculates the element effective system based on the concrete time integrator.

Public Member Functions inherited from b2000::Object
virtual const std::string &	get_object_name () const

virtual	~Object ()

Additional Inherited Members
Static Public Attributes inherited from b2000::Object
static ObjectType	type

Protected Attributes inherited from b2000::solver::TimeIntegrator< T >
b2linalg::Matrix< T, b2linalg::Mrectangle >	V_ {}
	Displacements.

b2linalg::Matrix< T, b2linalg::Mrectangle >	Z_ {}
	Velocities.

b2linalg::Matrix< T, b2linalg::Mrectangle >	dot_Z_ {}
	Accelerations.

int	current_stage_number_ {1}
	For multi-stage methods such as Runge-Kutta methods ...

int	max_stage_number_ {1}
	... (do not confuse this with b2000 stages)

double	dt {1}
	Step size.

Detailed Description

template<typename T>
class b2000::solver::NewmarkIntegrator< T >

One-step (and direct) method, either implicit or explicit. Scheme parameters determine stability and convergence. Default values are: (aka trapezoidal rule, 2nd order accurate) beta == 0.25 (beta deternubes stability), gamma == 0.5 (gamma determines accuracy)

Template Parameters

T	scalar template type parameter determines accuracy.

Member Function Documentation

◆ GetEffectiveElementSystem() [1/2]

template<typename T >

TimeIntegrator< T >::EffectiveSymmetricSystem b2000::solver::NewmarkIntegrator< T >::GetEffectiveElementSystem	(	const b2linalg::Matrix< T, b2linalg::Mpacked > &	k,
		const b2linalg::Matrix< T, b2linalg::Mpacked > &	d,
		const b2linalg::Matrix< T, b2linalg::Mpacked > &	m,
		const b2linalg::Matrix< T, b2linalg::Mrectangle_constref > &	dof,
		const b2linalg::Index &	index
	)		const

inlineoverridevirtual

Calculates the element effective system based on the concrete time integrator.

Parameters

[in]	k	The symmetric element stiffness matrix.
[in]	d	The symmetric element damping matrix.
[in]	m	The symmetric element mass matrix.
[in]	dof	Current global displacements, velocities and accelerations.
[in]	index	Local to global node mapping.

Returns: The effective element system with the symmetric matrix.

Implements b2000::solver::TimeIntegrator< T >.

◆ GetEffectiveElementSystem() [2/2]

template<typename T >

TimeIntegrator< T >::EffectiveUnsymmetricSystem b2000::solver::NewmarkIntegrator< T >::GetEffectiveElementSystem	(	const b2linalg::Matrix< T, b2linalg::Mrectangle > &	k,
		const b2linalg::Matrix< T, b2linalg::Mrectangle > &	d,
		const b2linalg::Matrix< T, b2linalg::Mrectangle > &	m,
		const b2linalg::Matrix< T, b2linalg::Mrectangle_constref > &	dof,
		const b2linalg::Index &	index
	)		const

inlineoverridevirtual

Calculates the element effective system based on the concrete time integrator.

Parameters

[in]	k	The unsymmetric element stiffness matrix.
[in]	d	The unsymmetric element damping matrix.
[in]	m	The unsymmetric element mass matrix.
[in]	dof	Current global displacements, velocities and accelerations.
[in]	index	Local to global node mapping.

Returns: The effective element system with the unsymmetric matrix.

Implements b2000::solver::TimeIntegrator< T >.

◆ InitializeFieldsForThisTimeStep()

template<typename T >

void b2000::solver::NewmarkIntegrator< T >::InitializeFieldsForThisTimeStep	(	b2linalg::Matrix< T, b2linalg::Mrectangle > &	dof,
		const b2linalg::Matrix< T, b2linalg::Mrectangle > &	dU
	)

inlineoverridevirtual

Update velocities and (possibly) also accelerations after each time step. This method will also save the values from the previous time step ("current" t_n+1) as the new values for the following time step ("new" t_n). When this method is called the displacements dof[0] are already up to date, but velocities dof[1] and accelerations dof[2] are not.

Parameters

[in,out]	dof	Fields containing displacements, velocities and accelerations.
[in]	dU	Working array containing increments of current iteration.

Implements b2000::solver::TimeIntegrator< T >.

◆ InitializeTimeIntegrator()

template<typename T >

void b2000::solver::NewmarkIntegrator< T >::InitializeTimeIntegrator	(	const b2linalg::Matrix< T, b2linalg::Mrectangle > &	initial_dof,
		const double	dt
	)

inlineoverridevirtual

Initialize the time integrator with the model to act on the initial condition, the initial point in time and the case definition for the current computation.

Parameters

[in,out]	initial_dof	The initial values of the DOF's.
[in]	dt	The initial step size for the first time step.

Implements b2000::solver::TimeIntegrator< T >.

◆ SetAttribute()

template<typename T >

virtual void b2000::solver::NewmarkIntegrator< T >::SetAttribute ( const Case & b2case )

inlineoverridevirtual

Set the attributes of the time stepping methods according to the parameters set in the given case definition.

Parameters

[in] b2case The current case.

Implements b2000::solver::TimeIntegrator< T >.

◆ UpdateFields()

template<typename T >

void b2000::solver::NewmarkIntegrator< T >::UpdateFields	(	b2linalg::Matrix< T, b2linalg::Mrectangle > &	dof,
		const b2linalg::Matrix< T, b2linalg::Mrectangle > &	dU
	)

inlineoverridevirtual

Update velocities and (possibly) also accelerations after each global iteration.

Parameters

[in,out]	dof	Fields containing displacements, velocities and accelerations.
[in]	dU	Working array containing increments of current iteration.

Implements b2000::solver::TimeIntegrator< T >.

The documentation for this class was generated from the following file:

solvers/time_integration/b2newmark.H
