#include "b2element.H"

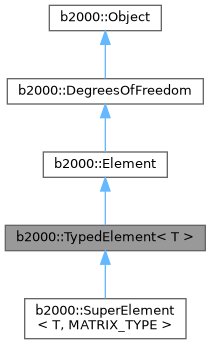

Inheritance diagram for b2000::TypedElement< T >:

[legend]

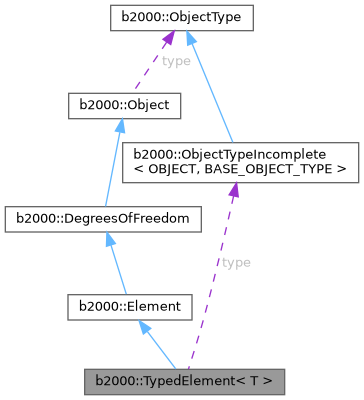

Collaboration diagram for b2000::TypedElement< T >:

[legend]

Public Member Functions
virtual void	get_constraint (Model &model, const bool linear, const double time, const b2linalg::Matrix< T, b2linalg::Mrectangle_constref > &dof, b2linalg::Index &dof_numbering, b2linalg::Vector< T, b2linalg::Vdense > &constraint, b2linalg::Matrix< T, b2linalg::Mcompressed_col > &trans_d_constraint_d_dof, b2linalg::Vector< T, b2linalg::Vdense > &d_constraint_d_time)

virtual void	edge_field_value (const int edge_id, const std::string &field_name, const double internal_coor, const b2linalg::Matrix< T, b2linalg::Mrectangle_constref > &dof, const double time, b2linalg::Vector< T, b2linalg::Vdense > &value, b2linalg::Vector< T, b2linalg::Vdense > &d_value_d_icoor, b2linalg::Index &dof_numbering, b2linalg::Matrix< T, b2linalg::Mrectangle > &d_value_d_dof, b2linalg::Index &d_value_d_dof_dep_col=b2linalg::Index::null)

virtual void	face_field_value (const int face_id, const std::string &field_name, const b2linalg::Vector< double, b2linalg::Vdense_constref > &internal_coor, const b2linalg::Matrix< T, b2linalg::Mrectangle_constref > &dof, const double time, b2linalg::Vector< T, b2linalg::Vdense > &value, b2linalg::Matrix< T, b2linalg::Mrectangle > &d_value_d_icoor, b2linalg::Index &dof_numbering, b2linalg::Matrix< T, b2linalg::Mrectangle > &d_value_d_dof, b2linalg::Index &d_value_d_dof_dep_col)

virtual void	body_field_value (const std::string &field_name, const b2linalg::Vector< double, b2linalg::Vdense_constref > &internal_coor, const b2linalg::Matrix< T, b2linalg::Mrectangle_constref > &dof, const double time, b2linalg::Vector< T, b2linalg::Vdense > &value, b2linalg::Matrix< T, b2linalg::Mrectangle > &d_value_d_icoor, b2linalg::Index &dof_numbering, b2linalg::Matrix< T, b2linalg::Mrectangle > &d_value_d_dof)

Old integration functions
The field_face_integration() and field_volume_integration() functions are currently in use by the implementation of the NaturalBoundaryCondition object implementing traction and body forces.
virtual void	field_volume_integration (const b2linalg::Vector< T, b2linalg::Vdense_constref > &dof, const b2linalg::Vector< T, b2linalg::Vdense_constref > &dofdot, const b2linalg::Vector< T, b2linalg::Vdense_constref > &dofdotdot, const Field< T > &f, b2linalg::Index &dof_numbering, b2linalg::Vector< T, b2linalg::Vdense > &discretised_field, b2linalg::Matrix< T, b2linalg::Mpacked > &d_discretised_field_d_dof)

virtual void	field_face_integration (const b2linalg::Vector< T, b2linalg::Vdense_constref > &dof, const b2linalg::Vector< T, b2linalg::Vdense_constref > &dofdot, const b2linalg::Vector< T, b2linalg::Vdense_constref > &dofdotdot, const Field< T > &field, int face, b2linalg::Index &dof_numbering, b2linalg::Vector< T, b2linalg::Vdense > &discretised_field, b2linalg::Matrix< T, b2linalg::Mpacked > &d_discretised_field_d_dof)

virtual void	field_edge_integration (const b2linalg::Vector< T, b2linalg::Vdense_constref > &dof, const b2linalg::Vector< T, b2linalg::Vdense_constref > &dofdot, const b2linalg::Vector< T, b2linalg::Vdense_constref > &dofdotdot, const Field< T > &f, int edge, b2linalg::Index &dof_numbering, b2linalg::Vector< T, b2linalg::Vdense > &discretised_field, b2linalg::Matrix< T, b2linalg::Mpacked > &d_discretised_field_d_dof)

Public Member Functions inherited from b2000::Element
virtual const std::vector< VariableInfo >	get_value_info () const

virtual std::pair< int, VariableInfo >	get_constraint_info ()

	Element (const bool symmetric)
	Sets the symmetry property of this element. Call this constructor if your newly defined element is not symmetric.

size_t	get_id () const

void	set_id (size_t id_)

int	get_elem_type_number () const

void	set_elem_type_number (int elno)

const std::string &	get_object_name () const override

void	set_object_name (const std::string &name)

int	get_number_of_dof () const override

size_t	set_global_dof_numbering (size_t index) override

std::pair< size_t, size_t >	get_global_dof_numbering () const override

virtual void	get_dof_numbering (b2linalg::Index &dof_numbering)

virtual std::pair< int, Node const >	get_nodes () const

virtual void	set_nodes (std::pair< int, Node const > nodes)

virtual const ElementProperty *	get_property () const

virtual void	set_property (ElementProperty *property)

virtual void	set_additional_properties (const RTable &rtable)

virtual void	init (Model &model)

virtual std::pair< size_t, Element ** >	get_subelements ()

iterator	begin ()

iterator	end () const

virtual int	edge_field_order (const int edge_id, const std::string &field_name)

virtual bool	edge_field_linear_on_dof (const int edge_id, const std::string &field_name)

virtual int	edge_field_polynomial_sub_edge (const int edge_id, const std::string &field_name, b2linalg::Vector< double, b2linalg::Vdense > &sub_nodes)

virtual void	edge_geom (const int edge_id, const double internal_coor, b2linalg::Vector< double > &geom, b2linalg::Vector< double > &d_geom_d_icoor)

virtual int	face_field_order (const int face_id, const std::string &field_name)

virtual bool	face_field_linear_on_dof (const int face_id, const std::string &field_name)

virtual int	face_field_polynomial_sub_face (const int face_id, const std::string &field_name, b2linalg::Matrix< double, b2linalg::Mrectangle > &sub_nodes, std::vector< Triangle > &sub_faces)

virtual void	face_geom (const int face_id, const b2linalg::Vector< double, b2linalg::Vdense_constref > &internal_coor, b2linalg::Vector< double > &geom, b2linalg::Matrix< double, b2linalg::Mrectangle > &d_geom_d_icoor)

virtual int	body_field_order (const std::string &field_name)

virtual bool	body_field_linear_on_dof (const std::string &field_name)

virtual int	body_field_polynomial_sub_volume (const std::string &field_name, b2linalg::Matrix< double, b2linalg::Mrectangle > &sub_nodes, std::vector< Tetrahedral > &sub_volumes)

virtual void	body_geom (const b2linalg::Vector< double, b2linalg::Vdense_constref > &internal_coor, b2linalg::Vector< double > &geom, b2linalg::Matrix< double, b2linalg::Mrectangle > &d_geom_d_icoor)

virtual std::pair< int, int >	get_state_buffer_size () const

virtual std::pair< int , double >	get_state_buffer (std::pair< int , double > buffers) const

virtual std::pair< const int , const double >	set_state_buffer (std::pair< const int , const double > buffers)

Public Member Functions inherited from b2000::Object
virtual	~Object ()

Bounding box
This function does not have to be overwritten for most implementations. Their purpose is to compute the bounding box of a deformed configuration, aligned with the axis of the branch-global coordinate system. This functionality can be used e.g. for contact overlay elements. The bounding box may be larger than the element, but not smaller. For elements using Lagrange shape functions, it is sufficient to compute the minimum and maximum deformed coordinates of all nodes in the given dimensions.
static type_t	type
	Element interface typed by the dof.

template<typename MATRIX_FORMAT >
void	AssembleElementEffectiveSystem (const solver::TypedSolver< T, MATRIX_FORMAT > &solver, b2linalg::Matrix< T, typename MATRIX_FORMAT::dense > &k_eff, b2linalg::Vector< T, b2linalg::Vdense > &f_eff, b2linalg::Index &index)
	Assembles the element effective matrix and vector.

template<typename MATRIX_FORMAT >
b2linalg::Matrix< T, typename MATRIX_FORMAT::dense >	AssembleElementEffectiveMatrix (const solver::TypedSolver< T, MATRIX_FORMAT > &solver, b2linalg::Index &index)
	Assembles the element effective matrix.

template<typename MATRIX_FORMAT >
T	ComputeElementError (const solver::TypedSolver< T, MATRIX_FORMAT > &solver)
	TODO.

template<typename MATRIX_FORMAT >
b2linalg::Vector< T, b2linalg::Vdense >	AssembleElementEffectiveVector (const solver::TypedSolver< T, MATRIX_FORMAT > &solver, b2linalg::Index index)
	Assembles the element effective vector.

template<typename MATRIX_FORMAT >
void	ComputeElementGradient (const solver::TypedSolver< T, MATRIX_FORMAT > &solver, GradientContainer *const gradient_container)
	Compute the gradients for post-processing.

virtual void	get_value (Model &model, const bool linear, const EquilibriumSolution equilibrium_solution, const double time, const double delta_time, const b2linalg::Matrix< T, b2linalg::Mrectangle_constref > &dof, GradientContainer gradient_container, SolverHints solver_hints, b2linalg::Index &dof_numbering, b2linalg::Vector< T, b2linalg::Vdense > &value, const std::vector< bool > &d_value_d_dof_flags, std::vector< b2linalg::Matrix< T, b2linalg::Mrectangle > > &d_value_d_dof, b2linalg::Vector< T, b2linalg::Vdense > &d_value_d_time)
	Compute the internal forces and their derivatives of the element.

virtual void	get_value (Model &model, const bool linear, const EquilibriumSolution equilibrium_solution, const double time, const double delta_time, const b2linalg::Matrix< T, b2linalg::Mrectangle_constref > &dof, GradientContainer gradient_container, SolverHints solver_hints, b2linalg::Index &dof_numbering, b2linalg::Vector< T, b2linalg::Vdense > &value, const std::vector< bool > &d_value_d_dof_flags, std::vector< b2linalg::Matrix< T, b2linalg::Mpacked > > &d_value_d_dof, b2linalg::Vector< T, b2linalg::Vdense > &d_value_d_time)
	Compute the internal forces and their derivatives of the element.

Additional Inherited Members
Public Types inherited from b2000::Element
enum	VariableInfo { zero = 0 , constant = 1 , linear = 2 , nonlinear = 3 }

Static Public Attributes inherited from b2000::Object
static ObjectType	type

Detailed Description

template<typename T>
class b2000::TypedElement< T >

Element interface typed by the dof type.

Member Function Documentation

◆ AssembleElementEffectiveMatrix()

template<typename T >

template<typename MATRIX_FORMAT >

b2linalg::Matrix< T, typename MATRIX_FORMAT::dense > b2000::TypedElement< T >::AssembleElementEffectiveMatrix	(	const solver::TypedSolver< T, MATRIX_FORMAT > &	solver,
		b2linalg::Index &	index
	)

inline

Assembles the element effective matrix.

Template Parameters

MATRIX_FORMAT Either b2000::b2linalg::Msymmetric or b2000::b2linalg::Munsymmetric.

Parameters

[in]	solver	Solver instance chosen by the user.
[out]	index	Local to global node mapping.

Returns: k_eff The element effective matrix.

Note: This is an adapter interface for the new solver design.

◆ AssembleElementEffectiveSystem()

template<typename T >

template<typename MATRIX_FORMAT >

void b2000::TypedElement< T >::AssembleElementEffectiveSystem	(	const solver::TypedSolver< T, MATRIX_FORMAT > &	solver,
		b2linalg::Matrix< T, typename MATRIX_FORMAT::dense > &	k_eff,
		b2linalg::Vector< T, b2linalg::Vdense > &	f_eff,
		b2linalg::Index &	index
	)

inline

Assembles the element effective matrix and vector.

Template Parameters

MATRIX_FORMAT Either b2000::b2linalg::Msymmetric or b2000::b2linalg::Munsymmetric.

Parameters

[in]	solver	Solver instance chosen by the user.
[out]	index	Local to global node mapping.
[out]	k_eff	The element effective matrix.
[out]	f_eff	The element effective vector.

Note: This is an adapter interface for the new solver design.

◆ AssembleElementEffectiveVector()

template<typename T >

template<typename MATRIX_FORMAT >

b2linalg::Vector< T, b2linalg::Vdense > b2000::TypedElement< T >::AssembleElementEffectiveVector	(	const solver::TypedSolver< T, MATRIX_FORMAT > &	solver,
		b2linalg::Index	index
	)

inline

Assembles the element effective vector.

Template Parameters

MATRIX_FORMAT Either b2000::b2linalg::Msymmetric or b2000::b2linalg::Munsymmetric.

Parameters

[in]	solver	instance chosen by the user.
[out]	index	Local to global node mapping.

Returns: f_eff The element effective vector.

Note: This is an adapter interface for the new solver design.

◆ body_field_value()

template<typename T >

virtual void b2000::TypedElement< T >::body_field_value	(	const std::string &	field_name,
		const b2linalg::Vector< double, b2linalg::Vdense_constref > &	internal_coor,
		const b2linalg::Matrix< T, b2linalg::Mrectangle_constref > &	dof,
		const double	time,
		b2linalg::Vector< T, b2linalg::Vdense > &	value,
		b2linalg::Matrix< T, b2linalg::Mrectangle > &	d_value_d_icoor,
		b2linalg::Index &	dof_numbering,
		b2linalg::Matrix< T, b2linalg::Mrectangle > &	d_value_d_dof
	)

inlinevirtual

Interpolate the value of the field and its derivatives at a specified face integration point for real-valued elements.

Parameters

field_name	The field name.
internal_coor	The element-internal coordinates (input).
dof	The solution vector (input).
time	The current time (input).
value	The value of the field interpolated at the given element-internal coordinates for the given dof and time.
d_value_d_icoor	The derivatives of the interpolated field value w.r.t. the element-internal coordinates (matrix, output).
dof_numbering	Array of the global dof indices on which the interpolated field value depends (vector, output).
d_value_d_dof	The derivatives of the interpolated field values w.r.t. the dof's (matrix, output).

◆ ComputeElementError()

template<typename T >

template<typename MATRIX_FORMAT >

T b2000::TypedElement< T >::ComputeElementError ( const solver::TypedSolver< T, MATRIX_FORMAT > & solver )

inline

TODO.

Template Parameters

MATRIX_FORMAT Either b2000::b2linalg::Msymmetric or b2000::b2linalg::Munsymmetric.

Parameters

[in] solver Solver instance chosen by the user.

Returns: TODO

Note: This is an adapter interface for the new solver design.

◆ ComputeElementGradient()

template<typename T >

template<typename MATRIX_FORMAT >

void b2000::TypedElement< T >::ComputeElementGradient	(	const solver::TypedSolver< T, MATRIX_FORMAT > &	solver,
		GradientContainer *const	gradient_container
	)

inline

Compute the gradients for post-processing.

Template Parameters

MATRIX_FORMAT Either b2000::b2linalg::Msymmetric or b2000::b2linalg::Munsymmetric.

Parameters

[in]	solver	instance chosen by the user.
[in]	gradient_container	const pointer to non-const gradient solution.

Note: This is an adapter interface for the new solver design.

◆ edge_field_value()

template<typename T >

virtual void b2000::TypedElement< T >::edge_field_value	(	const int	edge_id,
		const std::string &	field_name,
		const double	internal_coor,
		const b2linalg::Matrix< T, b2linalg::Mrectangle_constref > &	dof,
		const double	time,
		b2linalg::Vector< T, b2linalg::Vdense > &	value,
		b2linalg::Vector< T, b2linalg::Vdense > &	d_value_d_icoor,
		b2linalg::Index &	dof_numbering,
		b2linalg::Matrix< T, b2linalg::Mrectangle > &	d_value_d_dof,
		b2linalg::Index &	d_value_d_dof_dep_col = `b2linalg::Index::null`
	)

inlinevirtual

Interpolate the value of the field and its derivatives at a specified edge integration point for real-valued elements.

Parameters

edge_id	The edge number, starting at 1, according to the B2000++ conventions (input).
field_name	The field name.
internal_coor	The edge-internal coordinate (from -1 to +1) of the integration point (input).
dof	The solution vector (input).
time	The current time (input).
value	The value of the field interpolated at the given edge-internal coordinate for the given dof and time.
d_value_d_icoor	The derivatives of the interpolated field value w.r.t. the internal coordinate (vector, output).
dof_numbering	Array of the global dof indices on which the interpolated field value depends (vector, output).
d_value_d_dof	The derivatives of the interpolated field values w.r.t. the dof's (matrix, output).
d_value_d_dof_dep_col	Array of the global dof indices on which the interpolated field value depends for the current deformation (vector, output).

Reimplemented in b2000::ElementCFDHeat2DFieldL2Constant< FLUX, AXISYMMETRIC >.

◆ face_field_value()

template<typename T >

virtual void b2000::TypedElement< T >::face_field_value	(	const int	face_id,
		const std::string &	field_name,
		const b2linalg::Vector< double, b2linalg::Vdense_constref > &	internal_coor,
		const b2linalg::Matrix< T, b2linalg::Mrectangle_constref > &	dof,
		const double	time,
		b2linalg::Vector< T, b2linalg::Vdense > &	value,
		b2linalg::Matrix< T, b2linalg::Mrectangle > &	d_value_d_icoor,
		b2linalg::Index &	dof_numbering,
		b2linalg::Matrix< T, b2linalg::Mrectangle > &	d_value_d_dof,
		b2linalg::Index &	d_value_d_dof_dep_col
	)

inlinevirtual

Interpolate the value of the field and its derivatives at a specified face integration point for real-valued elements.

Parameters

face_id	The face number, starting at 1, according to the B2000++ conventions (input).
field_name	The field name.
internal_coor	The face-internal coordinates (input).
dof	The solution vector (input).
time	The current time (input).
value	The value of the field interpolated at the given face-internal coordinates for the given dof and time.
d_value_d_icoor	The derivatives of the interpolated field value w.r.t. the face-internal coordinates (matrix, output).
dof_numbering	Array of the global dof indices on which the interpolated field value depends (vector, output).
d_value_d_dof	The derivatives of the interpolated field values w.r.t. the dof's (matrix, output).
d_value_d_dof_dep_col	Array of the global dof indices on which the interpolated field value depends for the current deformation (vector, output).

◆ field_edge_integration()

template<typename T >

virtual void b2000::TypedElement< T >::field_edge_integration	(	const b2linalg::Vector< T, b2linalg::Vdense_constref > &	dof,
		const b2linalg::Vector< T, b2linalg::Vdense_constref > &	dofdot,
		const b2linalg::Vector< T, b2linalg::Vdense_constref > &	dofdotdot,
		const Field< T > &	f,
		int	edge,
		b2linalg::Index &	dof_numbering,
		b2linalg::Vector< T, b2linalg::Vdense > &	discretised_field,
		b2linalg::Matrix< T, b2linalg::Mpacked > &	d_discretised_field_d_dof
	)

inlinevirtual

Field integration on the (potentially deformed) edge of the element.

Parameters

dof	The current dof used by the element (input).
dofdot	The current velocity dof used by the element (input).
dofdotdot	The current acceleration dof used by the element (input).
f	The field to integrate.
edge	The edge over which to integrate the field.
dof_numbering	The dof numbering of the value returned by this function.
discretised_field	The value at dofs of the integration of the field on the edge of the element.
d_discretised_field_d_dof	The derivative w.r.t. the dof's of the value at dofs of the integration of the field on the edge element (matrix, output).

If a null index/vector/matrix is passed for one of the output parameters, this output shall not be computed.

◆ field_face_integration()

template<typename T >

virtual void b2000::TypedElement< T >::field_face_integration	(	const b2linalg::Vector< T, b2linalg::Vdense_constref > &	dof,
		const b2linalg::Vector< T, b2linalg::Vdense_constref > &	dofdot,
		const b2linalg::Vector< T, b2linalg::Vdense_constref > &	dofdotdot,
		const Field< T > &	field,
		int	face,
		b2linalg::Index &	dof_numbering,
		b2linalg::Vector< T, b2linalg::Vdense > &	discretised_field,
		b2linalg::Matrix< T, b2linalg::Mpacked > &	d_discretised_field_d_dof
	)

inlinevirtual

Field integration on the (potentially deformed) surface of the element.

Parameters

dof	The current dof's used by the element (input).
dofdot	The current velocity dof's used by the element (input).
dofdotdot	The current acceleration dof's used by the element (input).
field	The field to integrate.
face	The face on witch to integrate the field.
dof_numbering	The dof numbering of the value returned by this function.
discretised_field	The value at dofs of the integration of the field on the surface of the element.
d_discretised_field_d_dof	The derivative w.r.t. the dof of the value at dofs of the integration of the field on the surface element (matrix, output).

If a null index/vector/matrix is passed for one of the output parameters, this output shall not be computed.

◆ field_volume_integration()

template<typename T >

virtual void b2000::TypedElement< T >::field_volume_integration	(	const b2linalg::Vector< T, b2linalg::Vdense_constref > &	dof,
		const b2linalg::Vector< T, b2linalg::Vdense_constref > &	dofdot,
		const b2linalg::Vector< T, b2linalg::Vdense_constref > &	dofdotdot,
		const Field< T > &	f,
		b2linalg::Index &	dof_numbering,
		b2linalg::Vector< T, b2linalg::Vdense > &	discretised_field,
		b2linalg::Matrix< T, b2linalg::Mpacked > &	d_discretised_field_d_dof
	)

inlinevirtual

Field integration on the (potentially deformed) volume element.

Parameters

dof	The current dof used by the element (input).
dofdot	The current velocity dof used by the element (input).
dofdotdot	The current acceleration dof used by the element (input).
f	The field to integrate.
dof_numbering	The dof numbering of the value returned by this function.
discretised_field	The value at dofs of the integration of the field on the volume element.
d_discretised_field_d_dof	The derivatives w.r.t. the dof's of the value at dofs of the integration of the field on the volume element (matrix, output).

If a null index/vector/matrix is passed for one of the output parameters, this output shall not be computed.

◆ get_constraint()

template<typename T >

virtual void b2000::TypedElement< T >::get_constraint	(	Model &	model,
		const bool	linear,
		const double	time,
		const b2linalg::Matrix< T, b2linalg::Mrectangle_constref > &	dof,
		b2linalg::Index &	dof_numbering,
		b2linalg::Vector< T, b2linalg::Vdense > &	constraint,
		b2linalg::Matrix< T, b2linalg::Mcompressed_col > &	trans_d_constraint_d_dof,
		b2linalg::Vector< T, b2linalg::Vdense > &	d_constraint_d_time
	)

inlinevirtual

Must be overridden for real-valued elements with constraints: Compute the constraints of the element and their derivatives.

todo: not overridden by all elements

Parameters

model	The model object to which the Element belongs (input).
linear	A flag to indicate if the value returned must be linear in function of the dof and the time derivative of the dof (input).
time	The current time (input).
dof	The values and the time derivatives of all dof's present in the FE model. The first column of the matrix dof[0] are the dofs. The i.th column of the matrix (dof[i]) is the i.th time derivative of dof[0] (matrix, input).
dof_numbering	Array of the global dof indices on which the Element depends (vector, output).
constraint	The evaluated constraints, in function of dof and time. The size of the constraint vector must be equal to the number of constraints (vector, output).
trans_d_constraint_d_dof	The derivatives of constraint w.r.t. dof[0]. If trans_d_constraint_d_dof.is_null(), then the derivatives shall not be computed (transposed sparse matrix, output).
d_constraint_d_time	The derivatives of constraints w.r.t. time (vector, output).

◆ get_value() [1/2]

template<typename T >

virtual void b2000::TypedElement< T >::get_value	(	Model &	model,
		const bool	linear,
		const EquilibriumSolution	equilibrium_solution,
		const double	time,
		const double	delta_time,
		const b2linalg::Matrix< T, b2linalg::Mrectangle_constref > &	dof,
		GradientContainer *	gradient_container,
		SolverHints *	solver_hints,
		b2linalg::Index &	dof_numbering,
		b2linalg::Vector< T, b2linalg::Vdense > &	value,
		const std::vector< bool > &	d_value_d_dof_flags,
		std::vector< b2linalg::Matrix< T, b2linalg::Mpacked > > &	d_value_d_dof,
		b2linalg::Vector< T, b2linalg::Vdense > &	d_value_d_time
	)

inlinevirtual

Compute the internal forces and their derivatives of the element.

This is an overload where "d_value_d_dof" is supposed to be symmetric. For more information on individual input parameters see get_value() above.

◆ get_value() [2/2]

template<typename T >

virtual void b2000::TypedElement< T >::get_value	(	Model &	model,
		const bool	linear,
		const EquilibriumSolution	equilibrium_solution,
		const double	time,
		const double	delta_time,
		const b2linalg::Matrix< T, b2linalg::Mrectangle_constref > &	dof,
		GradientContainer *	gradient_container,
		SolverHints *	solver_hints,
		b2linalg::Index &	dof_numbering,
		b2linalg::Vector< T, b2linalg::Vdense > &	value,
		const std::vector< bool > &	d_value_d_dof_flags,
		std::vector< b2linalg::Matrix< T, b2linalg::Mrectangle > > &	d_value_d_dof,
		b2linalg::Vector< T, b2linalg::Vdense > &	d_value_d_time
	)

inlinevirtual

Compute the internal forces and their derivatives of the element.

This is an overlaod where d_value_d_dof is supposed to be unsymmetric.

Note: This is supposed to be overwritten by actual element classes.

todo Not all deriving classes implement this function and the implementation here is actually used for those elements.

Parameters

[in]	model	The model object to which the Element belongs (input).
[in]	linear	A flag to indicate if the value returned must be linear in function of the dof and the time derivative of the dof (input).
[in]	equilibrium_solution	Used by the elements with path dependent materials only. If true, the given dof and time derivatives represent an equilibrium solution (input).
[in]	time	The current time (input).
[in]	step_size	The current time step size of the incremental solution solver (input).
[in]	dof	The values and the time derivatives of all dofs present in the FE model. The first column of the matrix dof[0] are the dofs. The i.th column of the matrix (dof[i]) is the i.th time derivative of dof[0] (matrix, input).
[out]	gradient_container	To store the gradient data computed by the Element and/or ElementProperty object (output).
[in]	solver_hints	Can be used to add hints for the Solver (e.g. for damage material models, fracture elements, etc.) (output).
[in]	dof_numbering	Array of the global dof indices on which the internal forces depend (vector, output).
[in,out]	value	The first variation (internal forces), in function of dof and time (vector, output).
[in]	d_value_d_dof_flags	A vector of bool indicating for which derivatives of dof the second variation should be computed.
[in,out]	d_value_d_dof	The second variation, that is, d_value_d_dof[i] contains the derivatives of value w.r.t. dof[i]. If d_value_d_dof[i].is_null(), then the matrix shall not be computed (vector of packed matrices, output).
[out]	d_value_d_time	The derivatives of value w.r.t. time (vector, output).

The documentation for this class was generated from the following files:

model/b2domain.H
model/b2element.H

	b2api B2000++ API Reference Manual, VERSION 4.6

Public Member Functions

Bounding box

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ AssembleElementEffectiveMatrix()

◆ AssembleElementEffectiveSystem()

◆ AssembleElementEffectiveVector()

◆ body_field_value()

◆ ComputeElementError()

◆ ComputeElementGradient()

◆ edge_field_value()

◆ face_field_value()

◆ field_edge_integration()

◆ field_face_integration()

◆ field_volume_integration()

◆ get_constraint()

◆ get_value() [1/2]

◆ get_value() [2/2]
