b2000::HeatMaterial Class Reference

#include "b2heat_material.H"

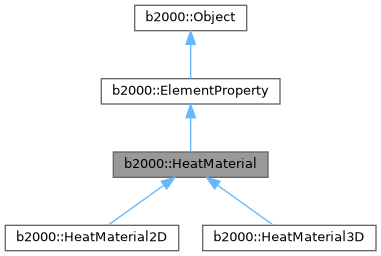

Inheritance diagram for b2000::HeatMaterial:

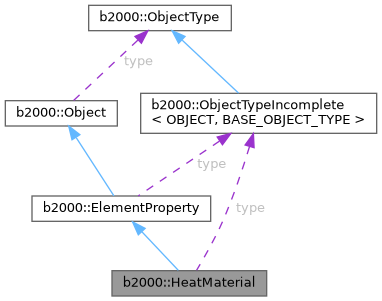

Collaboration diagram for b2000::HeatMaterial:

Public Member Functions
virtual int	number_of_layer () const
virtual void	laminate (const b2linalg::Vector< double, b2linalg::Vdense_constref > nodes_interpolation, double &laminate_begin, double &laminate_end)
virtual void	layer (const b2linalg::Vector< double, b2linalg::Vdense_constref > nodes_interpolation, const int layer_id, double &layer_begin, double &layer_end)
virtual LinearType	linear (const int layer_id=-1) const =0
virtual bool	isotropic (const int layer_id=-1) const =0
Public Member Functions inherited from b2000::ElementProperty
const std::string &	get_object_name () const override
Public Member Functions inherited from b2000::Object
virtual	~Object ()

Additional Inherited Members
Static Public Attributes inherited from b2000::Object
static ObjectType	type

Detailed Description

The base class for a heat material that define only the layer.

Member Function Documentation

isotropic()

virtual bool b2000::HeatMaterial::isotropic ( const int  layer_id = -1 ) const

pure virtual

Return true if the material is isotropic. In this case, the natural base is not used by the material object ant can be omitted (passing a null pointer).

If layer_id is not given, the isotropic propriety is for all the laminate (note that a laminate with more than on layer is not isotropic). Otherelse the isotropic propriety is for the given layer.

laminate()

virtual void b2000::HeatMaterial::laminate ( const b2linalg::Vector< double, b2linalg::Vdense_constref >  nodes_interpolation, double &  laminate_begin, double &  laminate_end  )

inlinevirtual

Return the laminate geometric position relatively to the mid-surface of the element.

layer()

virtual void b2000::HeatMaterial::layer ( const b2linalg::Vector< double, b2linalg::Vdense_constref >  nodes_interpolation, const int  layer_id, double &  layer_begin, double &  layer_end  )

inlinevirtual

Return the layer geometric position relatively to the mid-surface of the element.

linear()

virtual LinearType b2000::HeatMaterial::linear ( const int  layer_id = -1 ) const

pure virtual

Return 'linear' if the material is linear. In this case, a nonlinear analysis can use the linear methods instead of the nonlinear ones. Return nonlinear if the material is nonlinear. Return linear_on_sub_domain if the material is linear only on a sub domain of the strain value.

If layer_id is not given, the linearity propriety is for all the layers. Otherelse the linearity propriety is for the given layer.

number_of_layer()

virtual int b2000::HeatMaterial::number_of_layer ( ) const

inlinevirtual

Return the number of layer of the model.

---

The documentation for this class was generated from the following files:

• elements/properties/b2heat_material.H
• elements/properties/b2heat_material.C
