#include <type_traits>
#include "b2sparse_solver.H"
#include "utils/b2timing.H"
#include "b2blaslapack.H"
#include "b2linalg_solver_slave.H"
#include "utils/b2logging.H"

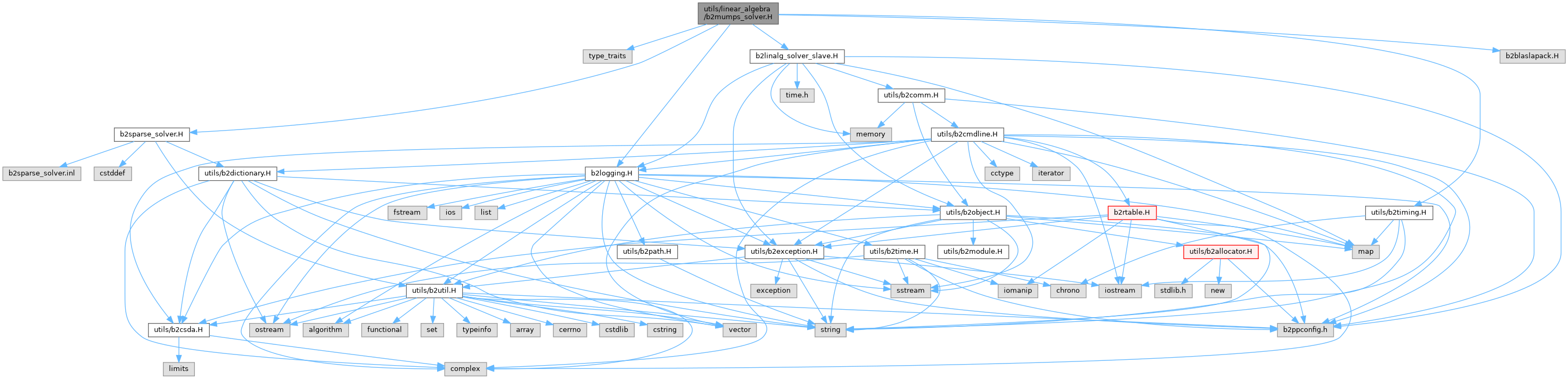

Include dependency graph for b2mumps_solver.H:

Classes
class	b2000::b2linalg::MUMPS_LDLt_seq_sparse_direct_solver< T >
	Implementation of the LDLt sparse solver interface with MUMPS. More...

class	b2000::b2linalg::MUMPS_LDLt_seq_extension_sparse_direct_solver< T >
	Implementation of the LDLt extension sparse solver interface with MUMPS. More...

class	b2000::b2linalg::MUMPS_LU_seq_sparse_direct_solver< T >
	Implementation of the LU sparse solver interface with MUMPS. More...

class	b2000::b2linalg::MUMPS_LU_seq_extension_sparse_direct_solver< T >
	Implementation of the LU extension sparse solver interface with MUMPS. More...

Namespaces
namespace	b2000
	Contains the base classes for implementing Finite Elements.

Typedefs
template<class T >
using	b2000::b2linalg::B2MUMPS_STRUC_t = typename B2MUMPS_STRUC< T >::type
	Convenience alias to refer to the B2MUMPS_STRUC type trait.

template<class T >
using	b2000::b2linalg::B2MUMPS_NUM_t = typename B2MUMPS_STRUC< T >::numtype
	Convenience alias to refer to the B2MUMPS_STRUC numtype trait.

Enumerations
enum	b2000::b2linalg::MUMPSICNTL : int
	MUMPS control constants for icntl. More...

enum class	b2000::b2linalg::MUMPSACTION : unsigned int
	Actions to take when running a MUMPS call. More...

Functions
void	b2000::b2linalg::mumps_error_handler (const int *const info, bool autospc=false)
	Handling errors that may occur during the execution of MUMPS.

template<typename MUMPS_STRUC_C >
void	b2000::b2linalg::decode_mumps_cntl (const Dictionary &d, MUMPS_STRUC_C &mumps_struct)
	Decode user configurations for cntl and icntl.

template<typename MUMPS_STRUC_C >
void	b2000::b2linalg::b2_mumps_call (MUMPS_STRUC_C &mumps_struct, MUMPSACTION action=MUMPSACTION::Continued)
	Encapsulate calls to MUMPS.

template<typename MUMPS_STRUC_C >
void	b2000::b2linalg::b2_mumps_new (MUMPS_STRUC_C &mumps_struct, MUMPS_INT sym)
	Initialize a new MUMPS interface structure.

template<typename MUMPS_STRUC_C >
void	b2000::b2linalg::b2_mumps_delete (MUMPS_STRUC_C &mumps_struct)
	Delete the MUMPS object.

template<typename MUMPS_STRUC_C >
void	b2000::b2linalg::b2_mumps_call_wsgrow (MUMPS_STRUC_C &mumps_struct)
	Calling MUMPS with MUMPSACTION::Continued and grow its workspace as needed.

template<typename T >
void	b2000::b2linalg::b2_mumps_init_struct (B2MUMPS_STRUC_t< T > &mumps_struct, bool &autospc, bool &updated, size_t s, size_t nnz, const size_t const colind, const size_t const rowind, const T *const value, const Dictionary &dictionary)
	Complete the MUMPS interface and define the matrix structure.

template<typename T >
void	b2000::b2linalg::mumps_solve (B2MUMPS_STRUC_t< T > &mumps_, bool &updated_value, bool autospc, size_t s, size_t nrhs, const T const b, size_t ldb, T const x, size_t ldx)
	Solving the equation system with MUMPS.

Detailed Description

Interaction with the MUMPS linear algebra package.

Enumeration Type Documentation

◆ MUMPSACTION

enum class b2000::b2linalg::MUMPSACTION : unsigned int

strong

Actions to take when running a MUMPS call.

We distinguish new objects and continued operation on an existing object, see the Mumps routine of the solver slave.

◆ MUMPSICNTL

enum b2000::b2linalg::MUMPSICNTL : int

MUMPS control constants for icntl.

See http://mumps.enseeiht.fr/doc/userguide_5.4.1.pdf page 63 (section 6.1). minus 1 to account for C arrays starting with 0.

Function Documentation

◆ b2_mumps_call()

template<typename MUMPS_STRUC_C >

void b2000::b2linalg::b2_mumps_call	(	MUMPS_STRUC_C &	mumps_struct,
		MUMPSACTION	action = `MUMPSACTION::Continued`
	)

inline

Encapsulate calls to MUMPS.

Each call of the solver has to notify all slaves to also start the processing. Their mumps_struct needs to be properly filled.

Parameters

mumps_struct	the MUMPS interface structure to use.
action	to perform in this MUMPS call.

◆ b2_mumps_call_wsgrow()

template<typename MUMPS_STRUC_C >

void b2000::b2linalg::b2_mumps_call_wsgrow ( MUMPS_STRUC_C & mumps_struct )

inline

Calling MUMPS with MUMPSACTION::Continued and grow its workspace as needed.

This offers a wrapper around the mumps_call functions and takes care of automatic workspace reallocation if the previous memory proofed to be insufficient.

Parameters

mumps_struct the MUMPS interface structure to use.

◆ b2_mumps_delete()

template<typename MUMPS_STRUC_C >

void b2000::b2linalg::b2_mumps_delete ( MUMPS_STRUC_C & mumps_struct )

inline

Delete the MUMPS object.

Cleanup of the allocated data structures for MUMPS. This routine calls MUMPS and lets it free its data structures on all processes.

Parameters

mumps_struct the MUMPS interface structure to delete.

◆ b2_mumps_init_struct()

template<typename T >

void b2000::b2linalg::b2_mumps_init_struct	(	B2MUMPS_STRUC_t< T > &	mumps_struct,
		bool &	autospc,
		bool &	updated,
		size_t	s,
		size_t	nnz,
		const size_t *const	colind,
		const size_t *const	rowind,
		const T *const	value,
		const Dictionary &	dictionary
	)

inline

Complete the MUMPS interface and define the matrix structure.

This function takes care of applying user configurations and defines the matrix structure for the equation system to solve.

Parameters

mumps_struct	the MUMPS interface structure to fill.
autospc	indication of whether symmetric numerically singular matrices are to be healed automatically if possible, this parameter is read from the user configuration in dictionary.
updated	indicates whether matrix entries have been updated since the last MUMPS call and is set to false as the factorization for the initial matrix provided in value is performed here.
s	order of the matrix (number of columns).
nnz	number of non-zeros in the matrix.
colind	index array to point to starting points in the list of non-zeroes in CSC formatted sparse matrix for all columns (size s).
rowind	array of row indices for all non-zeroes in the sparse matrix (size nnz).
value	pointer to the non-zero matrix entries in the order defined by colind/rowind.
dictionary	provides the user configuration with settings for the solver.

◆ b2_mumps_new()

template<typename MUMPS_STRUC_C >

void b2000::b2linalg::b2_mumps_new	(	MUMPS_STRUC_C &	mumps_struct,
		MUMPS_INT	sym
	)

inline

Initialize a new MUMPS interface structure.

Properly set up a new MUMPS interface structure across all processes. After the call of this function the interface structure is set up with basic settings, but still empty, the matrix still needs to be filled afterward.

Parameters

mumps_struct	the MUMPS interface structure to set up.
sym	MUMPS_INT integer flag to indicate the symmetry of the equation system to solve. See http://mumps.enseeiht.fr/doc/userguide_5.4.1.pdf page 25, section 5.2.1 Matrix type (SYM), 0 indicates unsymmetric, 1 symmetric positive definit and 2 general symmetric matrix.

◆ decode_mumps_cntl()

template<typename MUMPS_STRUC_C >

void b2000::b2linalg::decode_mumps_cntl	(	const Dictionary &	d,
		MUMPS_STRUC_C &	mumps_struct
	)

inline

Decode user configurations for cntl and icntl.

This routine extracts the user configuration for the control fields in the MUMPS interface.

Parameters

d	is the Dictionary with the user configuration to get the settings from.
mumps_struct	is the MUMPS interface structure where the control values are to be set.

Exceptions

Exception some error in the parsing of the user configuration occured.

◆ mumps_error_handler()

void b2000::b2linalg::mumps_error_handler	(	const int *const	info,
		bool	autospc = `false`
	)

inline

Handling errors that may occur during the execution of MUMPS.

This helping routine is used to check for possible errors in the infog field of the MUMPS interface.

Parameters

info	is a constant int pointer to the constant infog field in the MUMPS interface.
autospc	is a bool flag that indicates whether automatically deal with numerically singular matrices, if this is false, the computation will abort when null pivot rows were encountered, even if MUMPS itself does not report an error.

Exceptions

SingularMatrixError	autospc is false and matrix is numerically singular, MUMPS itself did not report an error.
Exception	Some error occured in the factorization and MUMPS returned a negative error code.

◆ mumps_solve()

template<typename T >

void b2000::b2linalg::mumps_solve	(	B2MUMPS_STRUC_t< T > &	mumps_,
		bool &	updated_value,
		bool	autospc,
		size_t	s,
		size_t	nrhs,
		const T *const	b,
		size_t	ldb,
		T *const	x,
		size_t	ldx
	)

Solving the equation system with MUMPS.

This implements the resolve function for both, LDLt and LU matrices

Parameters

mumps_	the MUMPS interface structure to use.
updated_value	flag to indicate whether matrix values have been updated, if true the matrix values are reevaluated. Is set to false by the routine.
autospc	indicates how to deal with numerical singular matrices in the error handler
s	length of the solution vector
nrhs	number of right hand sides to solve for
b	right hand side
ldb	length of individual right hand sides (>= s).
x	solution vector, needs to be long enough to hold solution for all right hand sides. If b and x are not pointing to the same address, b is copied into x for MUMPS.
ldx	length of individual solution vectors (>= s).

	b2api B2000++ API Reference Manual, VERSION 4.6
