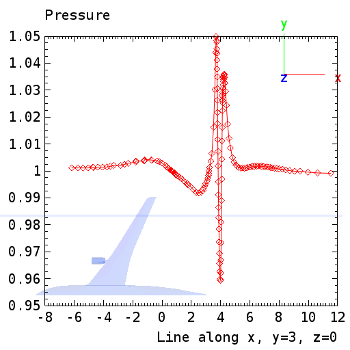

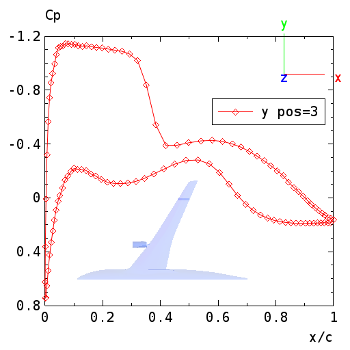

The CFD XY Tools fluid dynamics utility toolbox has been redesigned and now appears with a new graphical user interface and extended functionality. Examples of graphs generated with the CFD XY Tools fluid dynamics utility toolbox: Wing profile Cp plot (left) and probe along a straight line (right):
Published 2014-11-28, revised 2014-12-05
